Desktop/ Wallmount Chassis for ATX Motherboard, Supporting 3 x 5.25″ Drive Bays
- Supports ATX/mATX motherboard
- External 3 x 5.25″ drive bays
- One 92mm(70CFM) front fan
- Supports ATX type power supply
(Depth : up to 200mm) - Supports high perfromance graphic card
(Height: up to 146mm) - Supports horizontal & vertical mounting
Specification
Specification
System Board
ATX MB
Mounting
Desktop or Wallmount

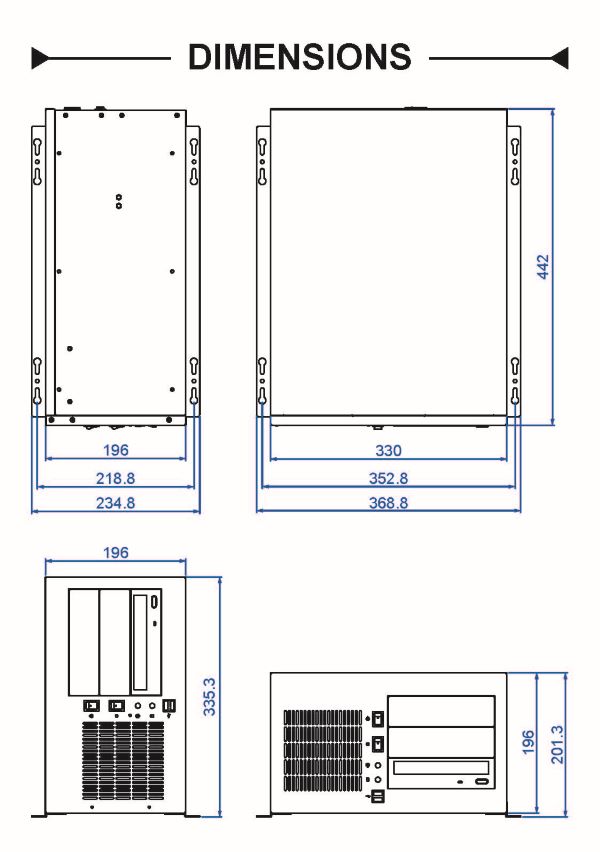

Dimension (W x D x H)
330 x 442 x 196 mm
Construction
Heavy-duty Steel
Standard Color
Beige, Black
Drive Bay
External: 3 x 5.25″
Internal: N/A

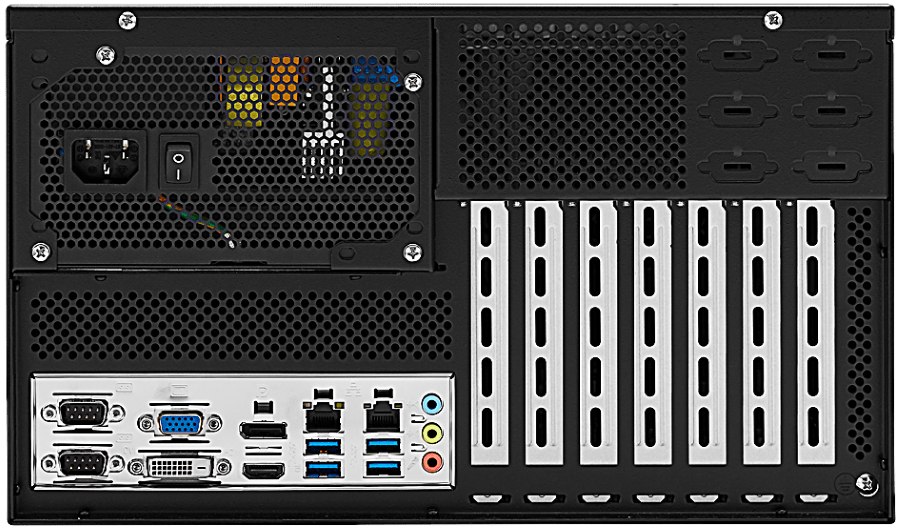

Expansion Slots
7
I/O Openings
6 x DB9
Cooling
Front: 1 x 92 mm (70 CFM)Fan
(Option: 120mm (108 CFM) Fan)
Air Filter
Yes
Internal USB ports
N/A

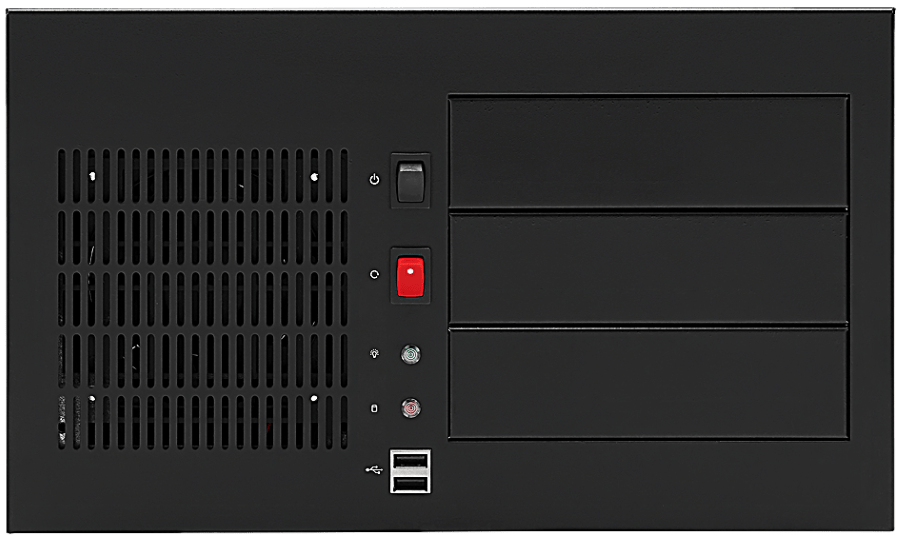

Front I/O
2 x USB2.0 ports (Option : USB3.0)
Front Controls
1 x Power on/off
1 x System reset
Front Indicator
1 x Power LED
1 x HDD LED
Power Supply
ATX type (Depth : up to 200mm)
Operating Temp.
0°C ~ 45°C
Humidity
5% ~ 95% non-condensing
Carton Size
545 x 425 x 310 mm
Weight (Net, Gross)
6.8 kg, 9.0 kg
